| Working Pressure Range | 1.3ATA-2.0ATA |
| Oxygen Flow Rate | 20L/Min |
| Chamber Shell Material | 20mm carbon steel |
| Oxygen Concentration | 96%±3% |
| Dimensions | 1850 * 880 * 1520 mm |
| Configuration | Capsule, Integrated Oxygen Generator, Water-cooled Air Conditioning System,Dual-screen Control (Interior and Exterior), PC Endurance Door Panel, 10μm Medical-grade Filter, egative Ion Disinfection System, Air Dehumidification，infrared therapy lamp, and electric sofa |
1 Unit MOQ — DDP Worldwide Delivery
| Working Pressure Range | 1.3ATA-2.0ATA |
| Oxygen Flow Rate | 20L/Min |
| Chamber Shell Material | 304 stainless steel, thickness ≥3mm |
| Oxygen Concentration | 96%±3% |
| Dimensions | 1970 * 1352 * 1857 mm |
| Configuration | Capsule, Integrated Oxygen Generator, Water-cooled Air Conditioning System, luxury electric massage sofa, Dual-screen Control System (Interior and Exterior), PC Endurance Door Panel, 10μm Medical-grade Filter, Negative Ion Disinfection System, Air Dehumidification, Infrared Therapy Lamp，Ultraviolet disinfection lamp, BIBS respiratory system |
1 Unit MOQ — DDP Worldwide Delivery
From cost-effective entry models to true 2.0 ATA luxury clinical engineering, choose the design that fits your door size, pressure requirements, and target clientele.
A budget-friendly option with shorter lead times, available in single to multi-user capacities.
The ultimate solution balancing high-pressure clinical functions with effortless logistical entry.

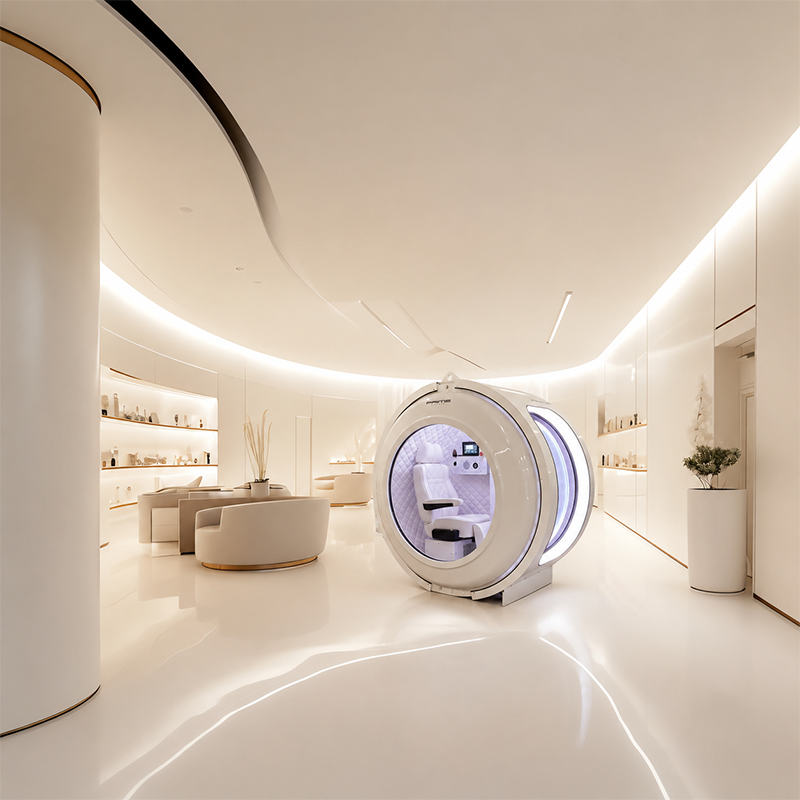

Extra-wide luxury chamber designed for premium wellness centers, VIP lounges, and elite sports recovery.
≥3mm thick 304 stainless steel, corrosion resistant, pressure resistant, long service life, stable operation without deformation.
Dual pressure standard for domestic and overseas markets, max 2.0ATA for high-end commercial rehabilitation institutions.
110V/220V dual voltage main unit, direct export to all countries without additional transformer.
10-inch large screens inside and outside, real-time data display, two-way voice intercom for safe monitoring.
Internal noise ≤63dB, no abnormal vibration sound during pressurization, quiet and comfortable treatment environment.
Integrated pressure, oxygen concentration, temperature & humidity sensors, automatic oxygen concentration control 25%-29%.
We have our own manufacturing team and a state-of-the-art workshop dedicated to building oxygen chamber systems, which helps reduce equipment costs and manufacturing lead times while maintaining the highest quality standards.
Production Process

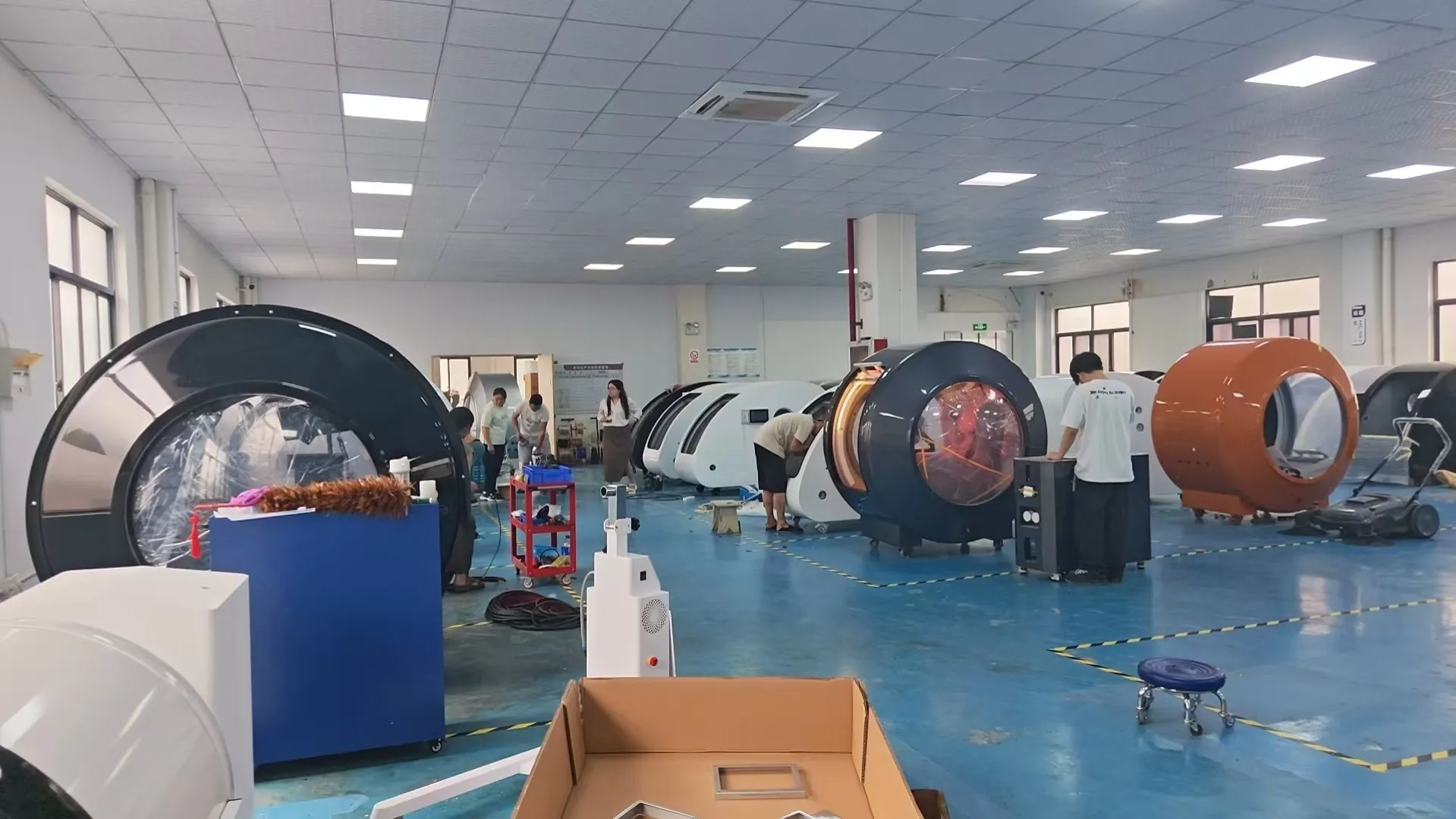

Hulls are cut, welded, pressure-tested and documented in our own Zhengzhou workshop. Nothing is outsourced, and every unit ships with its own test records.

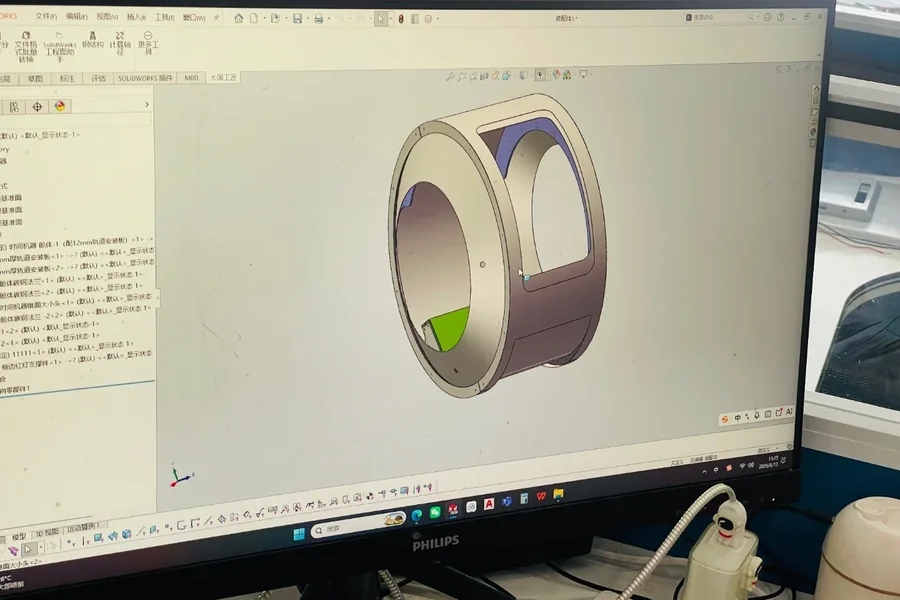

3D modelling, stress analysis and process planning for 2.0 ATA operation.

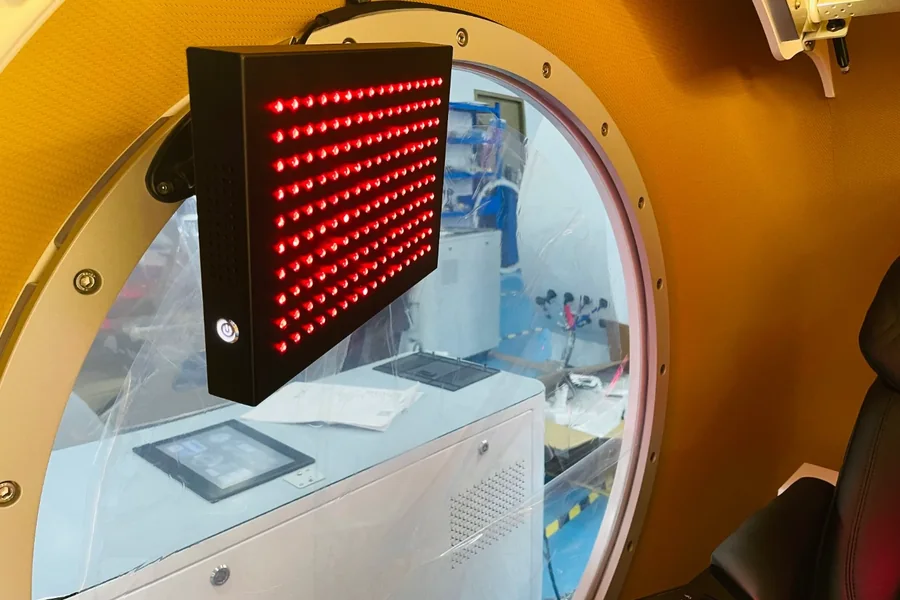

304 stainless steel shell ≥3 mm, acrylic viewports and certified seals.

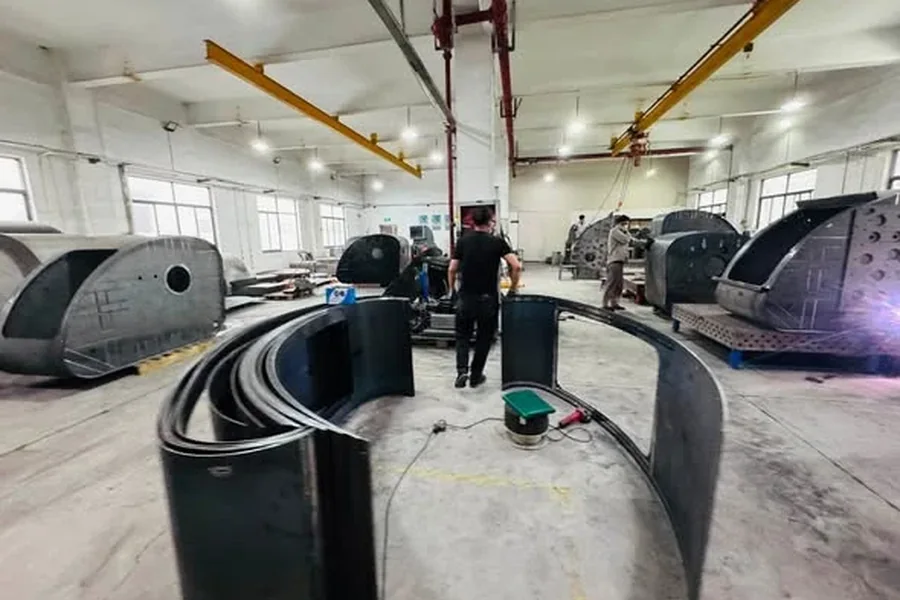

Professional cutting, CNC bending and rolling of the chamber shell.

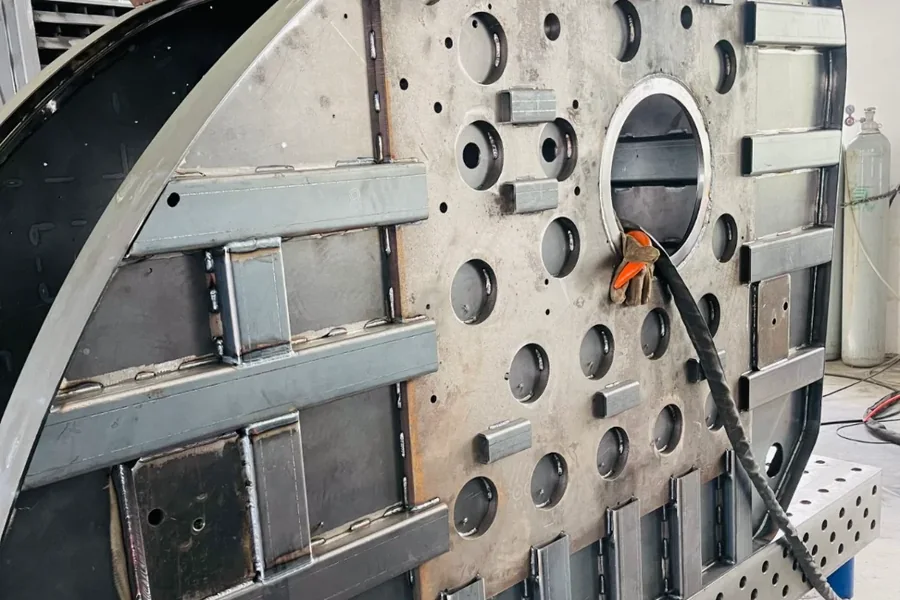

Full-penetration TIG seams, X-ray and dye-penetrant tested.
Actual test at 1.5× working pressure, held 30 minutes.

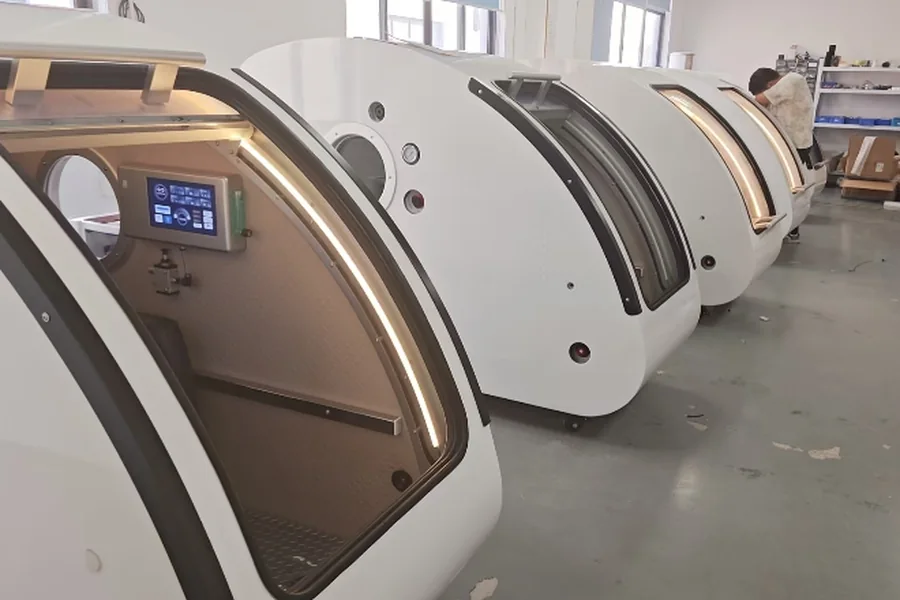

BIBS at 96% ±3%, relief valve, insulation and grounding checks.

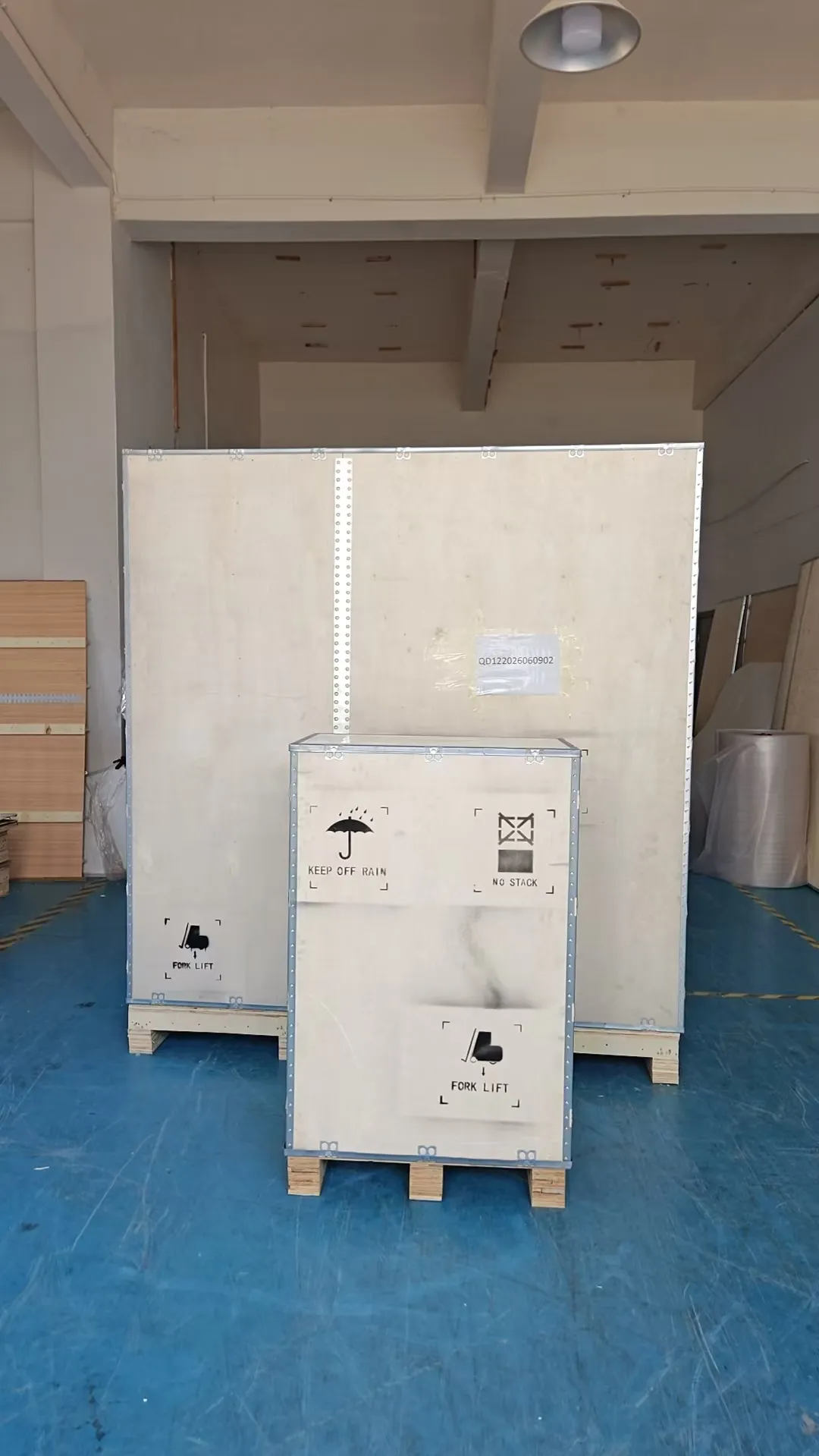

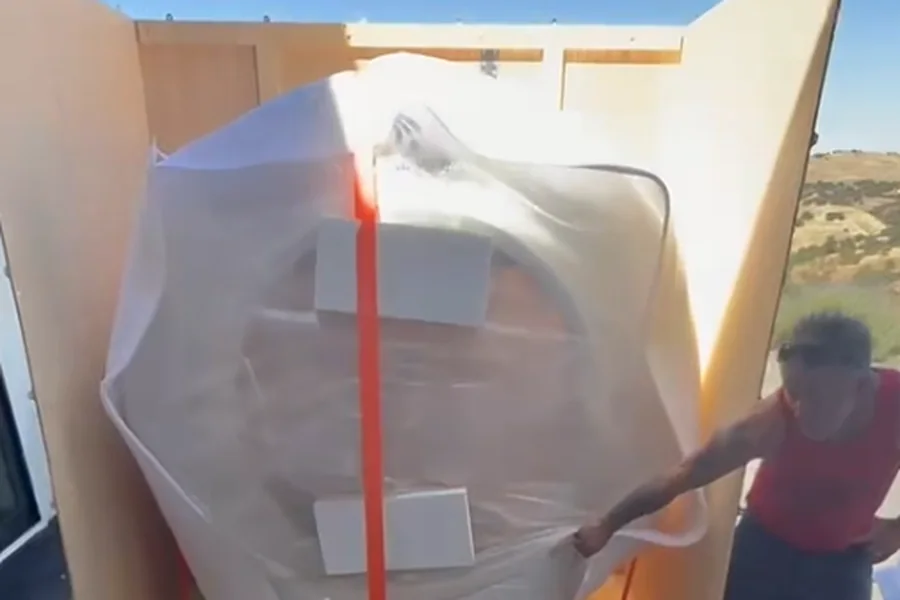

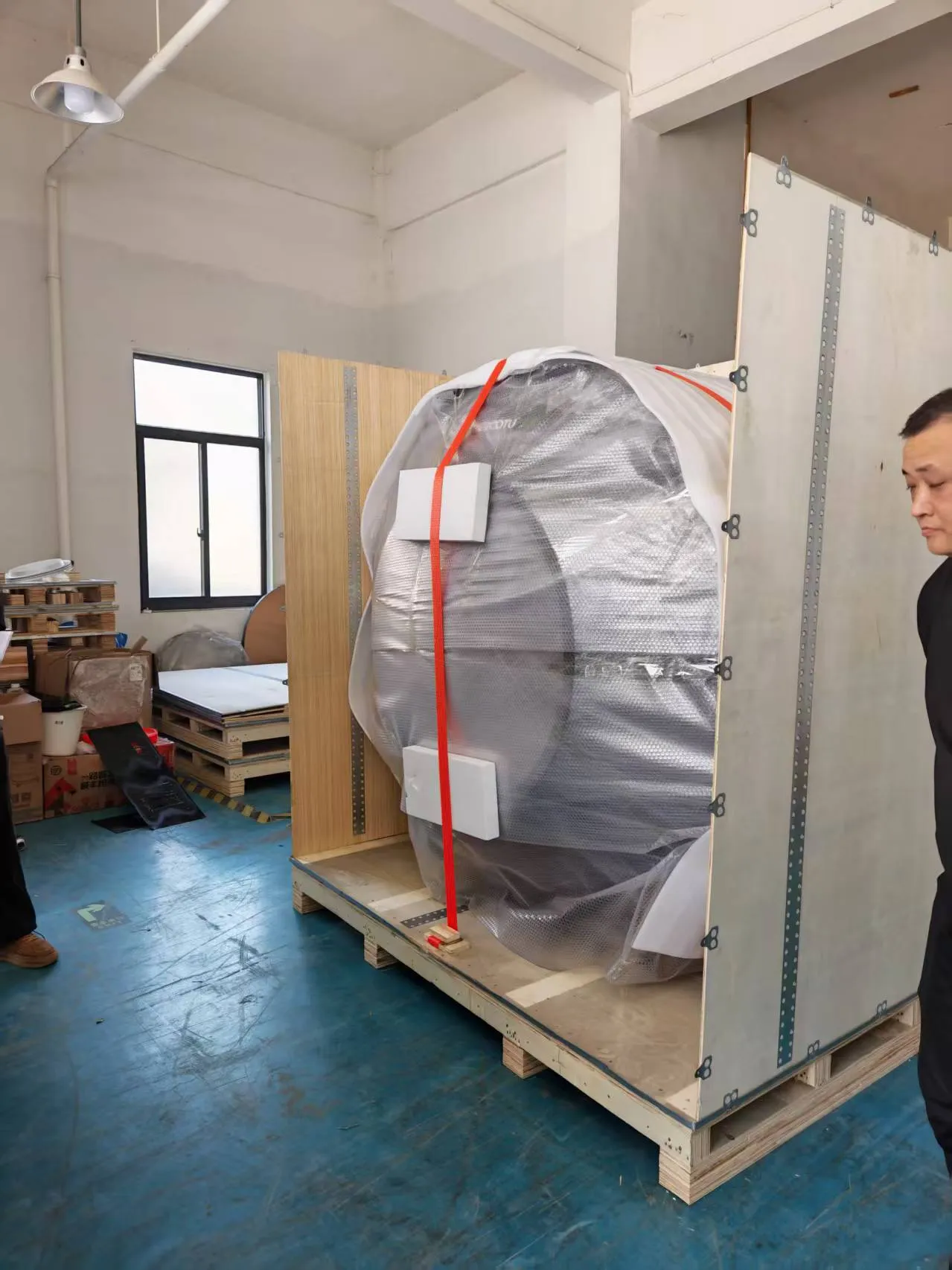

Final inspection, certification package and DDP shipping worldwide.
Every chamber ships with its pressure-test report, calibration records and the compliance documentation required for your market.
FAQ
Hyperbaric oxygen therapy involves breathing oxygen in a pressurized chamber at levels higher than atmospheric pressure. This increases oxygen absorption in the body, which can support general wellness, recovery, and overall vitality.
Yes. HBOT has an excellent safety profile when administered by trained professionals. Our chambers are CE certified and operated by certified hyperbaric technologists under physician supervision.
As cabin pressure increases, you'll feel mild fullness in your ears — similar to taking off in an airplane. The most common techniques are swallowing, yawning, gently wiggling your jaw, or the Valsalva maneuver (pinch your nose, close your mouth, and gently blow until your ears 'pop'). Equalize early and often, every few seconds, before any discomfort builds.
If you feel pressure, pain, or can't equalize, signal the operator (or use the internal controls) and pause or slow the pressurization immediately. Try swallowing, yawning, or a gentle Valsalva. If discomfort doesn't clear, depressurize slowly and end the session — never push through ear pain.
For safety reasons, personal electronics are not allowed inside the chamber. We provide entertainment options such as TV and music systems in our deluxe models to make your session more enjoyable.
It depends on your condition and goals. Most patients begin with 10 sessions and see meaningful improvement. Chronic conditions may benefit from 20-40 sessions. Our team will create a personalized treatment plan based on your specific needs.
