✦ 2.0 ATA · Mind Hyperbaric Series
Luxury Space Hyperbaric Chamber
The Luxury Space Hyperbaric Chamber is a 2.0 ATA clinical-grade chamber built for premium wellness spaces — private residences, anti-aging clinics and elite sports-recovery centers. A dual-wall hull lines the cabin in food-grade 304 stainless steel and carries the load in 20 mm carbon steel, holding therapeutic pressure for 15–20 years, while the built-in BIBS delivers 96% ± 3% oxygen through dual 10.1″ HD touchscreens. Factory-direct, CE and ISO 13485 certified, and ready to operate in any country.
✦ CE Certified
✦ ISO 13485
✦ DDP Worldwide
Factory Direct · Plug & Play · 1 Unit MOQ
01Core Advantages
Luxury Space Hyperbaric Chamber Advantages
Six breakthroughs that separate the Luxury Space Hyperbaric Chamber from every soft-shell and entry-level hard-shell chamber on the market.
⬢
20 mm Carbon Steel Pressure Hull
A 20 mm carbon-steel shell carries the full external load, rolled from plate supplied by certified pressure-vessel mills. Every plate ships with its factory material test certificate — chemistry, tensile, yield and impact data, traceable to the batch.
◎
True 2.0 ATA — 4-Stage
Genuine 2.0 ATA adjustable across 1.3 / 1.5 / 1.8 / 2.0, meeting the Tel Aviv anti-aging study threshold.
◫
Panoramic PC Viewport
Door and viewport are cut from optical-grade PC with at least 90% light transmission — the cabin reads as a glass pod rather than a sealed box. The door glides up and down on a single track, so entry stays one-handed.
▣
Dual HD Touch Display
Twin 10.1-inch HD touchscreens inside and outside with two-way voice intercom. All parameters freely adjustable.
◎
Ultra-Quiet ≤ 50 dB
Water-cooled AC system keeps internal noise below 50 dB — quieter than normal conversation. No abnormal vibration.
◉
Intelligent Monitoring
Integrated sensors monitor pressure, O₂ concentration, temperature and humidity. 10 µm medical-grade air filter.
02Application Scenarios
Luxury Space Hyperbaric Chamber Applications
Engineered to disappear into the most refined interiors — from private residences to clinical spas.
6 / ENVIRONMENTS
01
Overseas Luxury Home Wellness
02
European & American Anti-Aging Spa
03
Sports Rehabilitation Center
04

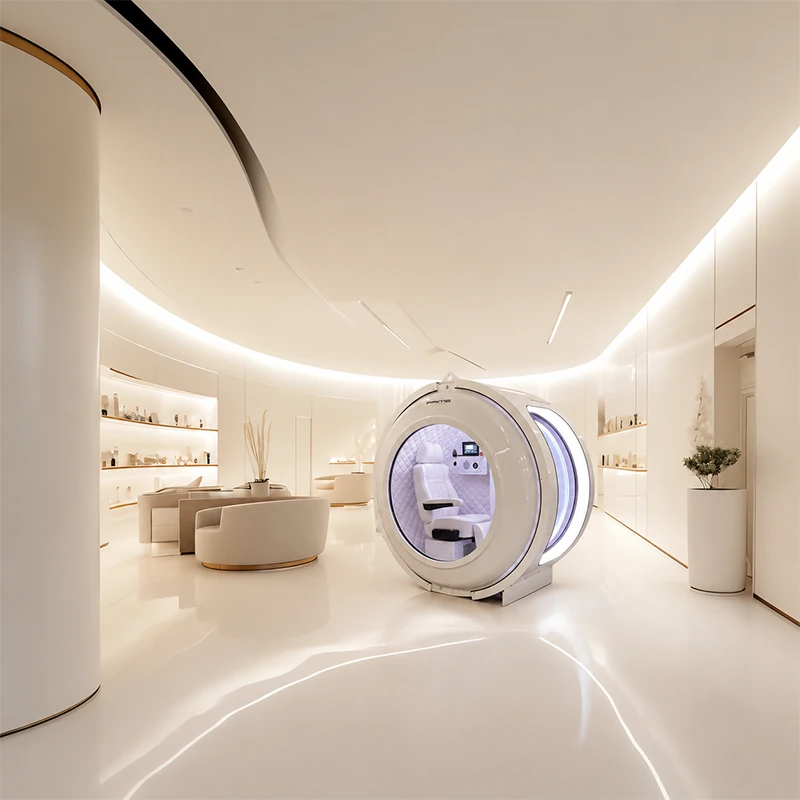

Beauty Center
05

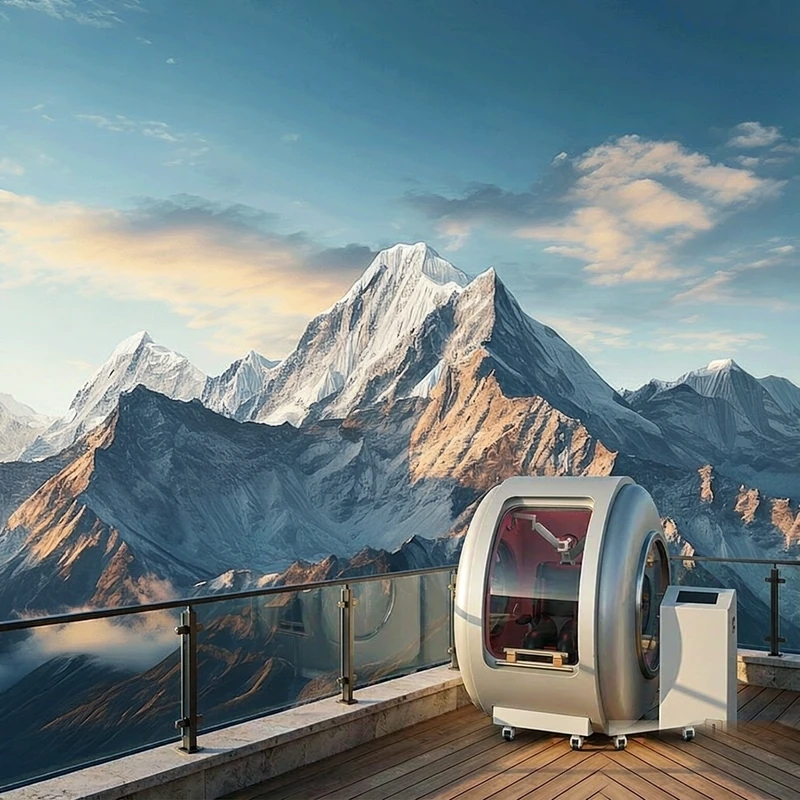

High-Altitude Resident Household
06

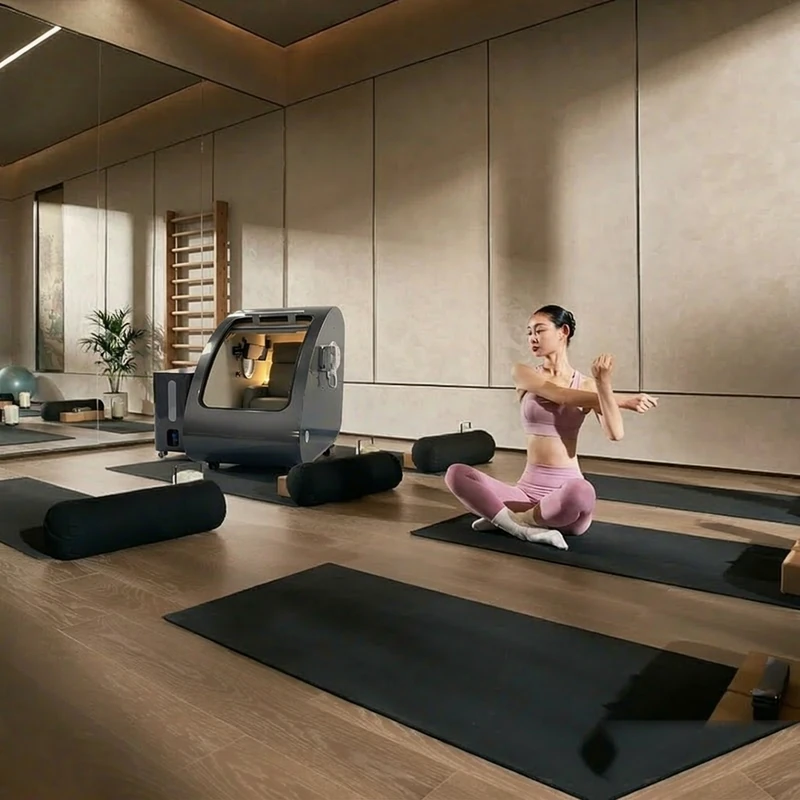

Private Health Club
03Technical Specifications
Engineered to clinical-grade detail.
Every figure below is measured, certified and built for continuous commercial operation.
Max Pressure
2.0 ATA (1.3 / 1.5 / 1.8 / 2.0)
Chamber Material
304 stainless interior · 20 mm carbon steel exterior
Cabin Width
880mm
Seating
Luxury car electric massage sofa
Respiratory System
BIBS — 96% ± 3% O₂
Display
Dual 10.1″ HD touchscreens
Intercom
Two-way voice communication
Power
2500 W · 110 V / 220 V
Noise Level
≤ 63 dB (water-cooled AC)
Air Filtration
10 µm medical-grade filter
Monitoring
Pressure · O₂ · Temp · Humidity
Dimensions
1850 × 880 × 1520 mm (L × W × H)
04Engineering Deep Dive
The parts competitors don’t spec.
Three systems decide whether a 2.0 ATA chamber actually performs in year five. Most suppliers list them as line items. We build them ourselves.
01
100 kPa Dedicated Oxygen Plant
Off-the-shelf concentrators are rated for room-pressure delivery. Push 96% oxygen into a 2.0 ATA cabin and back-pressure erodes concentration — the gauge still reads, the patient does not get the dose. Our generator is custom-built to a 100 kPa discharge and pressure-matched to this chamber, so concentration holds at full pressure, not just at the outlet.
Custom-Built · Pressure-Matched
02
Sealing Rated for Pressure Cycling
Compression seals on the door, viewport and every service port — specified for thousands of pressurisation cycles, not one factory test. Each unit is verified in a 24-hour static hold at 2.0 ATA with zero measurable pressure drop before it leaves the line.
24-Hour Static Hold · Zero Drop
03
DDP — Delivered, Duty Paid
Export clearance, ocean freight, destination customs and import duties are all on us. The price you sign is the price you pay, delivered to your address — no surprise charges waiting at the port, no separate broker to appoint.
One Invoice · To The Door
Every unit ships as a tested, complete chamber — not a kit. Pressure report, material certificates and leakage record travel with the machine.
05Ownership Benefits
The machine is only half of what you buy.
Four things decide whether a capsule earns on schedule — how many protocols it can sell, how fast it goes live, how it is proven, and how little cash you put at risk before it ships.
01
Four protocols on one invoice
Pressure steps 2.0 → 1.8 → 1.5 → 1.3 ATA from the touchscreen, so one capsule sells as four different sessions — recovery, anti-aging, sports and general wellness — without a second unit, a second room or a second operator.
02
Delivered complete, not as a kit
Chamber, integrated oxygen generator, water-cooled air conditioning, dual control screens and seating arrive assembled and factory-tested. Position it, connect power, run the first session — no installation crew and no on-site assembly.
03
Tested eight ways before it ships
Structural pressure, airtightness, pressure control, gas system, electrical safety, interlock protection, durability and appearance are verified to GB/T 12130-2020 and TSG 24-2015. The signed inspection report and certificate of conformity travel in the crate.
04
Balance paid after you watch it run
50% on order. The rest only after a live video inspection of your finished unit on the test bench — the chamber you approve is the chamber that ships, with no substitute build and no stock photography.
Prefer to see the factory first? We run live video walkthroughs of the welding, assembly and testing workshops — ask for one with your quote.
06How to Order
From inquiry to delivery in four steps.
A streamlined procurement process designed for international distributors, clinics and wellness facility operators.
01
✉
Send Inquiry
Submit your requirements via the quote form below. Tell us your country, facility type and expected volume.
02
📄
Custom Quote
Receive a detailed quotation within 24 hours including unit pricing, DDP shipping and certification documents.
03
⚙
Production & QC
Your chamber enters production with full ISO 13485 quality control. Each unit undergoes pressure and safety testing before release.
04
🌍
Global Delivery
DDP shipping to 50+ countries. Plug-and-play installation with remote support and on-site training available.
07Certifications & Warranty
Certified, compliant, covered.
Every unit ships with international certifications and a comprehensive manufacturer warranty.
◆
ISO 9001:2015
Quality Management System
◆
CE (EMC / LVD)
EU Safety & EMC Compliance
◆
RoHS
Hazardous Substance Free
◆
ISO 13485
Medical Device Quality
24 months comprehensive warranty for non-human damage
Fully covering chambers, compressors, and electronic products, supported by MindOXY Global Services.
Fully covering chambers, compressors, and electronic products, supported by MindOXY Global Services.
08FAQ
Common Questions
Straight answers to the questions clinics, wellness centers and distributors ask most.
Is 2.0 ATA pressure safe for commercial use?−
Yes. 2.0 ATA reaches the threshold of the Tel Aviv anti-aging study, yet every session stays safe through fully automated monitoring, a two-way intercom and an emergency-stop system built for continuous commercial operation.
What does the BIBS respiratory system include?+
The Built-In Breathing System delivers 96% ± 3% oxygen directly via a medical-grade mask — included as standard, not an add-on. Most competitor chambers do not offer it at all.
How loud is the chamber during operation?+
The water-cooled AC system keeps internal noise below 50 dB — quieter than normal conversation — with no abnormal vibration, so sessions stay calm and spa-like.
What power supply is required?+
A dual-voltage 110 V / 220 V system drawing 2500 W. No external transformer is needed — plug and play in any country, ideal for global deployment.
Which certifications does the unit hold?+
ISO 9001:2015, CE (EMC / LVD), RoHS and ISO 13485 — backed by a 24-month comprehensive manufacturer warranty and MindOXY global service.
What does the warranty cover?+
Full coverage on the chamber, compressor and electronics for 24 months, supported by MindOXY’s worldwide service network.
09Get a Free Quote
Request your customized quotation.
Tell us about your facility and we’ll send a detailed quote within 24 hours — including unit pricing, DDP shipping and certification documents.
▸
Response Time
7 * 24 customer service representative online
▸
MOQ
1 unit — no minimum order required
▸
Shipping
DDP to 50+ countries worldwide
▸
Payment Terms
T/T, L/C, Western Union — flexible terms for distributors
Prefer to email us directly?
